High voltage SF6 load break switch for switchgear FLN48-12D/FLRN48-12D

Описание:

SF6 Load Break Switch is an important component of high-voltage switchgear, used for electrical circuit breaking, work switching, protective melting, and other operations in high-voltage electrical equipment to prevent overcurrent and short circuit faults from occurring in the circuit.

Запросить цитату

Скачать

подробность

This series of Load Switch is developed by our company in 2003 and is applied to XGN14-12SF6 ring main unit.it has high economy, safety, reliability, simple structure, flexible operation, reliable interlocking and convenient installation. It meets the standard of IEC60694、GB3804、GB16926 etc.

Working condition

O Ambient temperature: Max. +40°C ; Min.- -35°C . O Humidity: Maximum average relative humidity daily average:≤95%; monthly average:≤90%. O Altitude:≤2000m. O Seismic resistance:8 degree. O The surrounding air should be free from corrosive, flammable gases, water vapor, etc., and should not be subjected to frequent and severe vibrations. O Annual leaKAge rate:≤0.1%.

Product definition

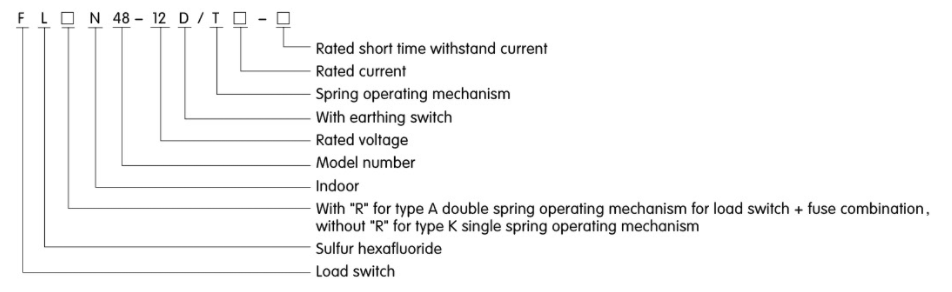

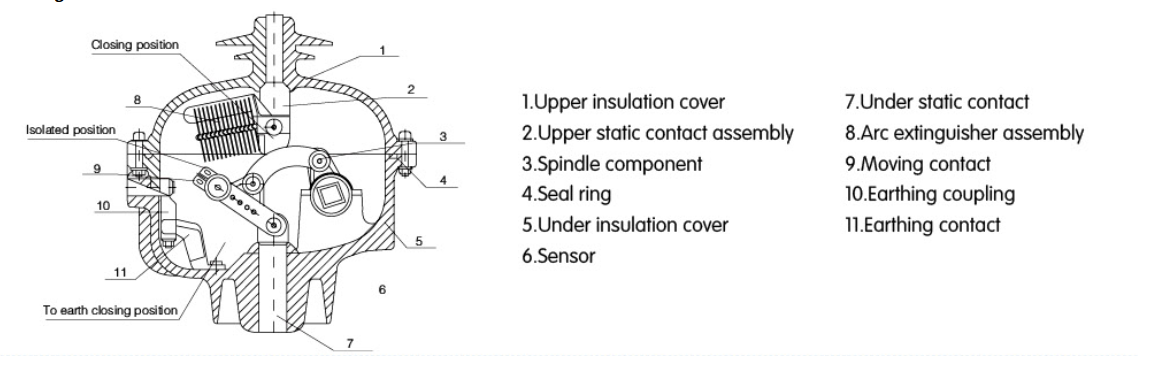

Drawing

ltem	Unit	FLN48-12D/T630-20 type load switch	FLRN48-12D/125-50 type load switch-fuse combination unit
Rated voltage	KV	12	12
Rated frequency	Hz	50	50
Rated current	A	630	125
l min Power frequency withstand voltage,to earth,phase to phase/Fracture	KV	42/48	42/48
Lightning impulse withstand voltage,to earth,phase to phase/Fracture	KV	75/85	75/85
5min Zero gauge pressure rated power frequency withstand voltage	KV	24	24
Rated thermal stability current 3s/2s load switch/Earthing Switch	KA	20/20	20/20
Rated dynamic current(peak)load switch/earthing switch	KA	50/50	50/50
Rated short circuit closing current load switch/earthing switch	KA	50/50	125/50
Rated closed-loop breaking curreni	A	630
Rated active load breaking curren	A	630
Rated cable charging breaking currenl	A	10	10
Rated short circuit breaking current	KA		50*
Rated transfer currenl	A		1700
Fuse type			XRNT-12KV/100A*
Fuse impact output energy	J		1±0.5
Mechanical life load switch/earthing switch	Times	5000/200	3000/2000
Air insulation distance between charged body and to earth	mm	≥125	≥125
SF6 gas pressure(20℃ relative pressure	bar	0.4	0.4
Opening and closing synchronization	Ms	≤2	≤2
Main loop resistance	μφ	≤65	≤65
