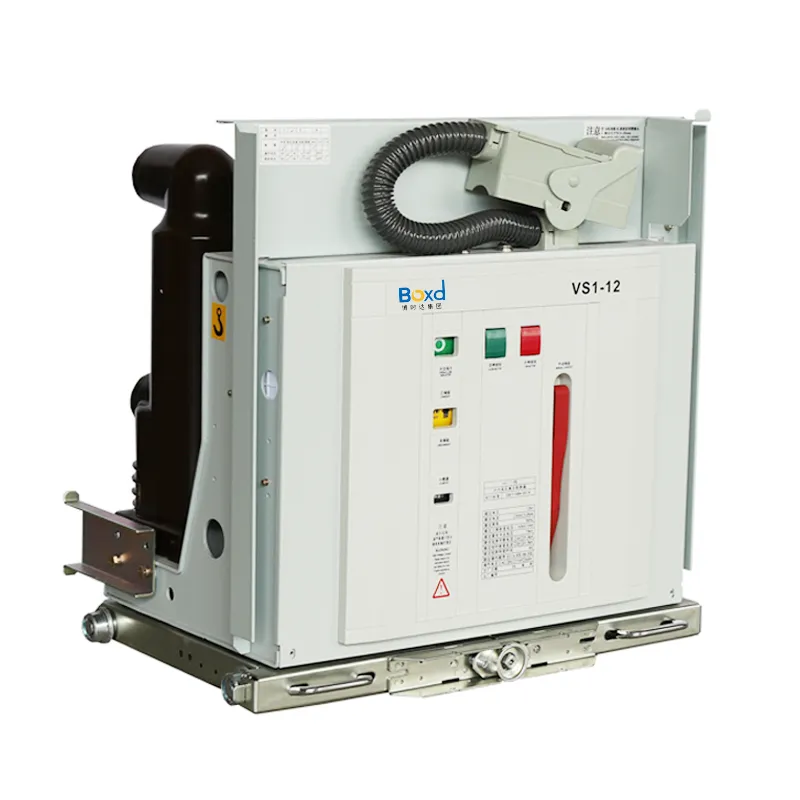

ZN63(VS1)-12 Handcart indoor vacuum circuit breaker

Описание:

• Classification Series ：Indoor Vacuum Circuit Breaker • Product Name ：ZN63(VS1)-12 Handcart indoor vacuum circuit breaker • Product Overview： VS1 (ZN63A)-12 series indoor high voltage vacuum circuit breaker is three phase AC 50Hz indoor high voltage switchgear with rated voltage 12kV, divided into handcart type and stationary type. This VCB is widely used to power stations...

Запросить цитату

Скачать

подробность

VS1 (ZN63A)-12 series indoor high voltage Vacuum Circuit Breaker is three phase AC 50Hz indoor high voltage switchgear with rated voltage 12kV, divided into handcart type and stationary type. This VCB is widely used to power stations,substations,and industrial and mining enterprises to control or protection power transmission and distribution systems, specially for the important high altitude breaking load and frequent operation place and reliable interlock function.

The operating mechanism is for the spring energy storage type, can use AC and DC energy storage operations. The circuit breaker can be used for extremely frequent operation place, equipped with KYN28A-12 handcart type switch cabinet, and the fixed type VCB can also be used for XGN series switch cabinets. It conforms to National Standard GB1984-2003, and the related IEC standards.

The circuit breaker is designed as a front-rear split charging structure, which both can be used as a fixed installation unit, and also be equipped with the chassis as used in the mounted, handcart unit.

Environment Condition

Ambient temperature:-15℃~+40℃

Altitude: ≤1000m

Daily average relative humidity: ≤95%

Monthly average relative humidity: ≤90%

Earthquake intensity: ≤8 degree

No fire, explosion, severe vibration, chemical corrosion and serious pollution

Technical Data

1	Rated voltage		kV	12
2	Max. working voltage		kV	12
3	Rated Current		A	630, 1250	16,002,000	2000, 2500
					2500, 3150	3150, 4000
4	Rated short-circuit breaking current		kA	20/25	31.5	40
5	Rated short-circuit closing current (peak)		kA	50/63	80	100
6	Rated peak withstand current		kA	50/63	80	100
7	4s rated short-circuit withstand current		kA	20/25	31.5	40
8	Nos. of rated short-circuit breaking current		Times	50 (30 above 40kA)
9	Rated operating sequence			0-0.3s-CO-180s-CO/
				0-180s-CO-180s-CO(Above 40KA)
10	Rated lightning impulse withstand voltage		kV	75(Switch gap:85)
11	1min power frequency withstand voltage		kV	42 (Switch gap:48)
12	Mechanical life		Times	10000
13	Contact open distance		mm	11±1
14	Contact Over-travel (Length of spring compression)		mm	3.5±0.5
15	Rated switch-on/off operating voltage		V	AC110/220,DC110/220
16	Tripping time	Max. operating voltage	s	≤0.05
		Min. operating voltage		≤0.08
17	Closing time		s	0.1
18	Motor rated power		W	70 (above 40kA: 100W)
19	Average closing speed		m/s	0.5-0.8
20	Average opening speed		m/s	0.9-1.2
21	Contact closing bounce time		ms	≤2
22	Three phase contact closing opening asynchrony		ms	≤2
23	The main circuit resistance each phase		μΩ	630A≤50, 1250A≤50, 1600A≤40
24	Allowed consumpted thickness of contacts		mm	3

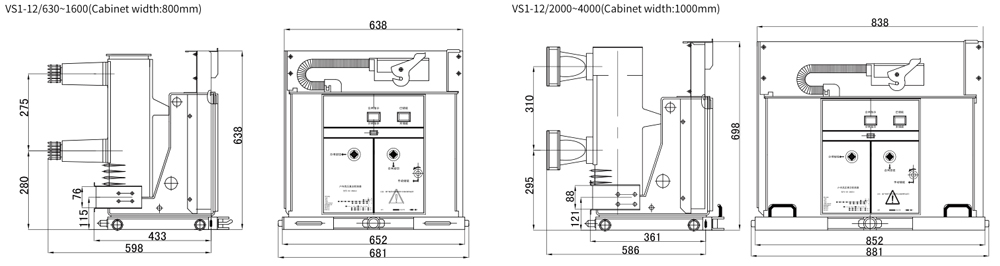

Outline Dimension
