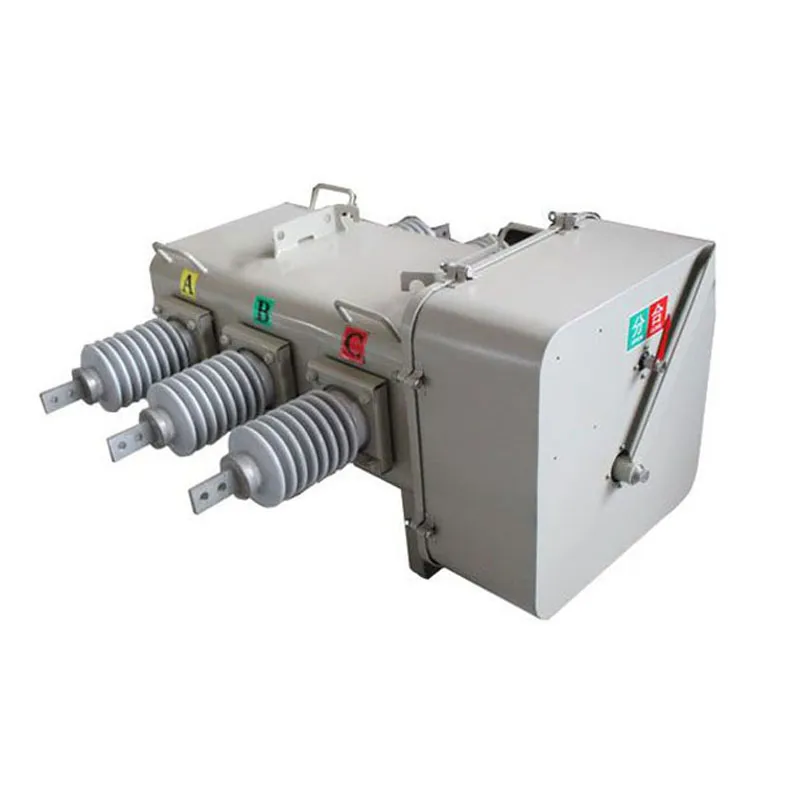

LW3-10IⅡ Ⅲ series outdoor high voltage SF6 circuit breaker is a new outdoor high-voltage electrical arcing and sulfur hexafluoride gas asinsulating medium.The operating mechanism points(I type)manual storage spring mechanism,(Ⅱ type)motor energy storage spring mechanism,(Ⅲ type)DC electromagnetic actuator three,all kinds of fish breaker actuator perfect combination of body as a whole.This product compared toother fish 10kV class outdoor circuit breakers,has a simple structure,high arcing and insulation performance,small operating power,high ratings,long life and no maintenance cycle and other significant advantages.Use of this product will not only reduce the area.Reduce project cost andeliminate the risk of fire,and can greatly improve the reliability of the power system.

Technical Parameters

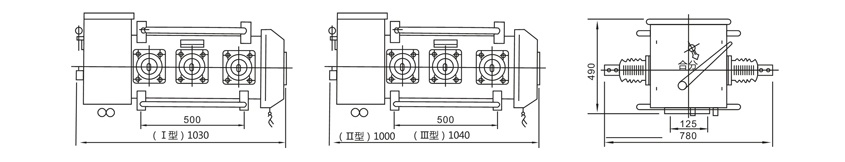

Outline dimension

Product model

LW3-10/400-6.3、LW3-10/400-8、LW3-10/400-12.5、LW3-10/400-16、LW3-10/400-20

LW3-10/630-6.3、LW3-10/630-8、LW3-10/630-12.5、LW3-10/630-16、LW3-10/630-20
