Product Summary

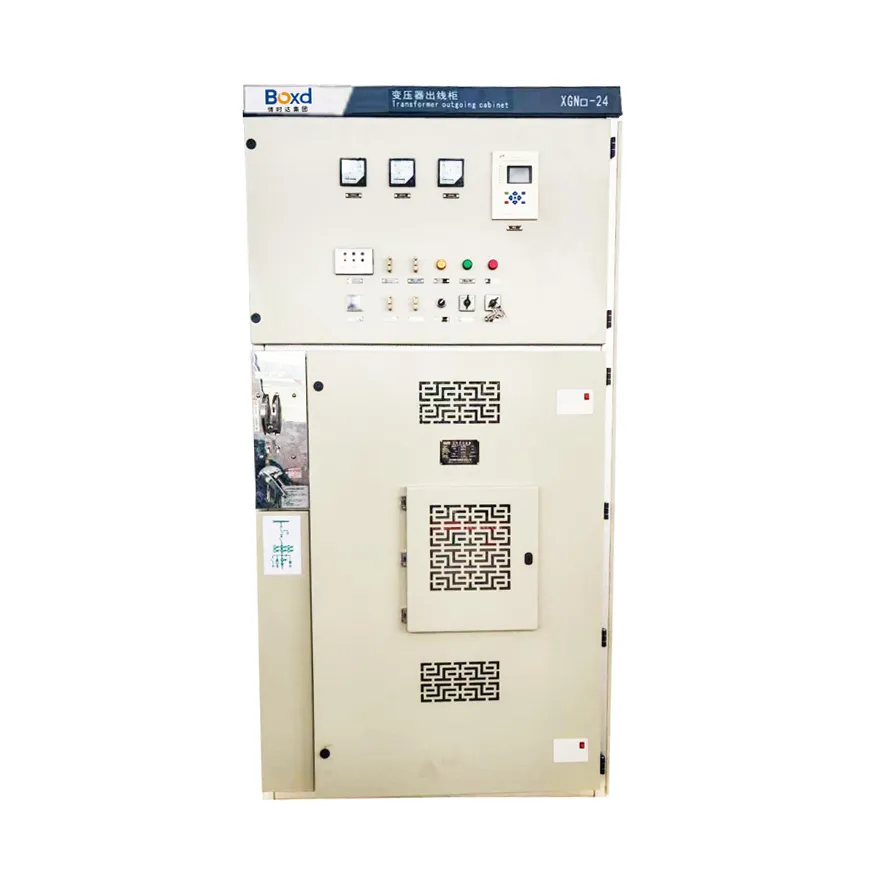

XGN15-24(SF6) Unit AC Metal-enclosed Ring Network Switchgear (hereinafter referred to as ring network switchgear) adopts advanced foreign technology and meets the demands of domestic and urban network reconstruction. It is a new generation of high-voltage electrical products developed through independent design and development. All the technical performance meets the standards of IEC 62271-200:2003 and GB 3006.

The main switch, operating mechanism, and other components of the ring network switchgear use original ABB equipment or SF1-12 switchgear, which is assembled in China using imported parts. We can also use original imported ABB equipment: SF1 type SF6 circuit breaker or VD4-S type Vacuum Circuit Breaker. Its operation mode can be divided into two types: manual and electric. The cabinet is processed using numerical control machine tools and connected by rivets. Its protection degree is IP3X. It has a reliable mechanical interlock and an operation function for error prevention.

The product has a small volume, light weight, beautiful appearance, easy operation, long life, high parameters, no pollution, and requires minimal maintenance, making it an extremely remarkable product.

XGN15-24(SF6) Unit AC Metal-enclosed Ring Network Switchgear is used in the power system of AC 50Hz 12kV to receive and distribute power. The main switch in the cabinet is an SF6 switch.

Use environmental conditions

1.The altitude should not exceed 2000m.

2.Surrounding air temperature: -25℃ ~+40℃

3.Relative temperature: the daily average value is not higher than 95%, the the monthly average value is nothigher than 90%

4.Surrounding air without caustic gas or ignitable gas, steam and other obvious pollution

5.Without fierce vibration

Main Technical Parameters
